Wall Liner

TE-MA 1700

Item no.: 4350740EAN: 4006825659146
  • Very powerful motor for best milling results
  • For making dimensionally accurate cuts or grooves in masonry or similar.
  • Easy and safe operation thanks to large handlebars
  • Thanks to the suction adapter compatible with Einhell wet/dry vacuum cleaners
  • Infinitely variable milling depth adjustment allows maximum flexibility
  • Flexible cutting width adjustment for narrow and wide grooves
  • Safe operation thanks to soft start and pulling cut
  • Marking of the cutting disc position for precise cuts
  • Spindle lock for easy disc change
  • Guide roller and additional handle for comfortable working
  • Overload protection for durability and user protection
  • Large range of action thanks to 4┬ám long cable
  • Incl. storage bag for clean and safe transport
  • Incl. 4 diamond cutting discs, so that you can start your project right away
See more information
productimage
Article description

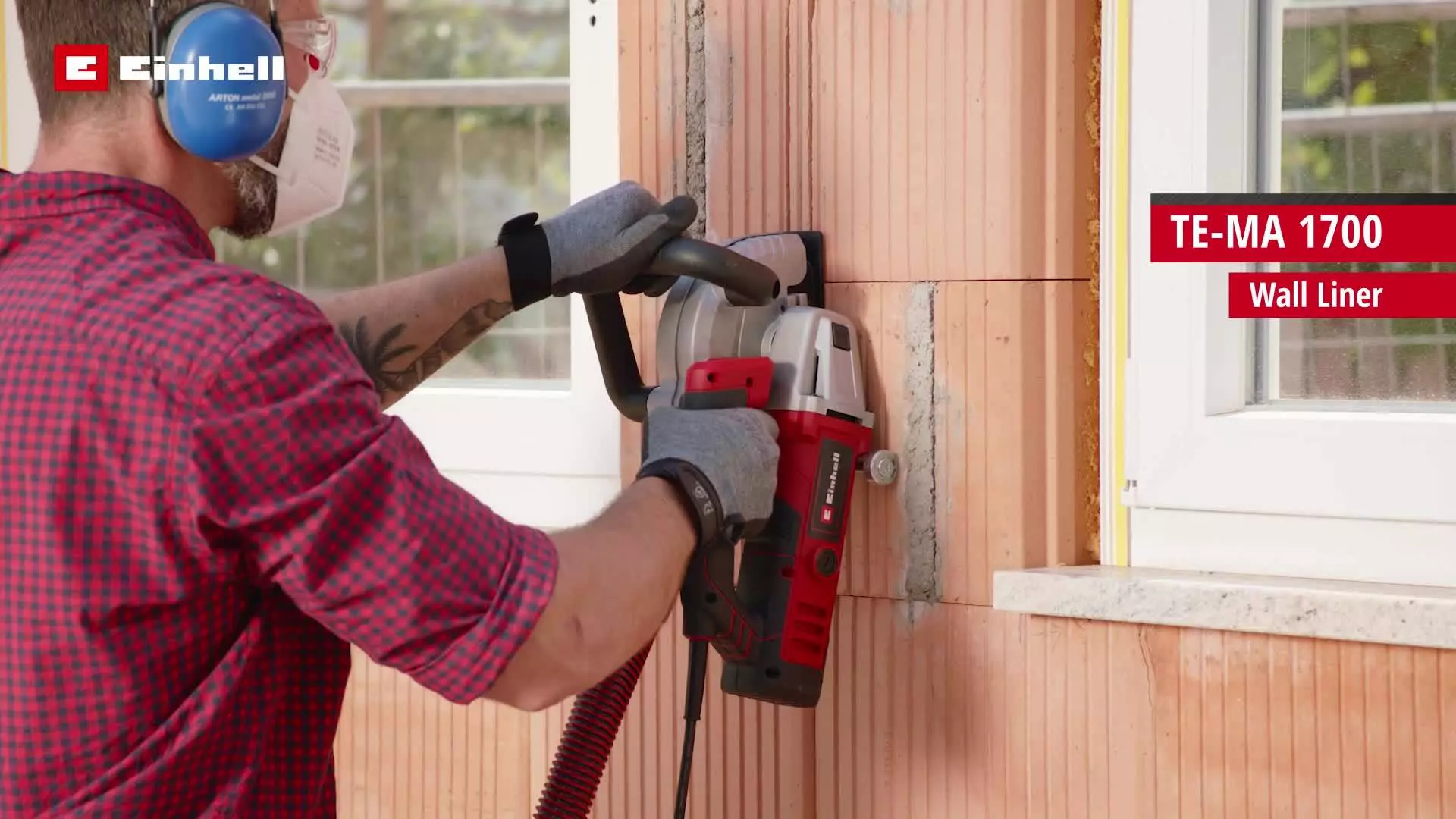

The Einhell wall chaser TE-MA 1700 mills horizontal and vertical grooves and channels for pipes or the like into the masonry. Compared to working with pure "muscle power" in conjunction with a hammer and chisel, the wall chaser is recommended for all milling work on hard materials, solely due to time and power savings. The wall chaser produces dimensionally accurate cuts or grooves in the masonry using two cutting discs running parallel to one another with 1,700 W power. The recess for cables, for example, is chiseled out after the rough work with a rotary hammer or other suitable tool. The very powerful motor ensures the best milling results, the infinitely variable milling depth adjustment and the individual cutting width adjustment for narrow and wide grooves allow maximum flexibility. The large handle provides easy and safe operation. The safe application is supported by the soft start and the pulling cut. The overload protection ensures longevity and protection for the user. The guide roller and the additional handle support the comfortable handling through a firm, secure hold. Marking the cutting wheel position allows precise positioning of the device and dimensionally accurate cuts. The wall chaser has a spindle lock for easy disc replacement. Thanks to the suction adapter, the wall chaser is compatible with the Einhell wet/dry vacuum cleaners. The 4-metre-long cable ensures a large operating radius in use. Delivery includes a storage bag for clean and safe transport as well as four diamond cutting discs, so that you can start your project right away.

Technical details

Mains supply220-240 V | 50 Hz
Power1700 W
Idle speed7000 min^-1
Cutting disc150 mm x 22.2 mm
Groove depth8 mm - 40 mm
Groove width8 mm - 38 mm
full_width_image
full_width_image
Einhell customer service can be reached directly. We take care of your requests for product information, spare parts and repairs.We support you with all questions around your product - before, during and after the purchase.
